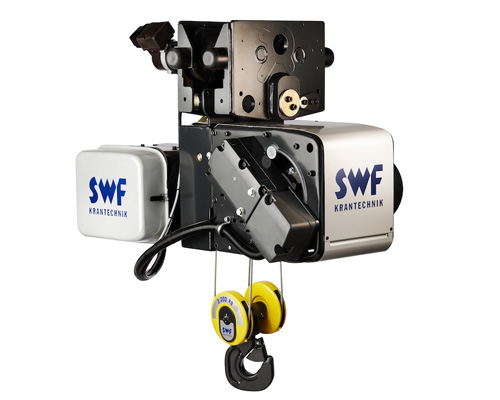

德国SWF钢丝绳电动葫芦

起重量 起升高度 起升速度 工作级别 型号 Type
Load (kg) Lifting Height (m) Lifting Speed (m/min) Class
快速 Fast 慢速 Low FEM ISO KONECRANES (CXT) SWF (NOVA)
3,200 6 5 0.8 2m 5 CXT30410032P25FA NB04X5AFP2
3,200 9.5 5 0.8 2m 5 CXT30410032P25FC NB04X5CFP2
5,000 6 5 0.8 2m 5 CXT40410050P35FB NC04X5BFP3
5,000 6 8 1.3 2m 5 CXT40410050P45HB NC04X5BHP4
5,000 9 5 0.8 2m 5 CXT40410050P35FC NC04X5CFP3
5,000 9 8 1.3 2m 5 CXT40410050P45HC NC04X5CHP4
5,000 12 5 0.8 2m 5 CXT40410050P35FD NC04X5DFP3
5,000 12 8 1.3 2m 5 CXT40410050P45HD NC04X5DHP4
10,000 9 5 0.8 2m 5 CXT50410100P55FD ND04X5DEP5
10,000 9 8 1.3 2m 5 CXT50410100P65HD ND04X5DHP6
10,000 12 5 0.8 2m 5 CXT50410100P55FE ND04X5EEP5
10,000 12 8 1.3 2m 5 CXT50410100P65HE ND04X5EHP6
16,000 10 5 0.8 2m 5 CXT50810160P75JG ND08X5GJP7
16,000 14 5 0.8 2m 5 CXT60410160P65FE NE04X5EFP6
20,000 10 5 0.8 1Am 4 CXT50810020P74JG ND08X4GJP7
20,000 14 5 0.8 1Am 4 CXT60410200P74FE NE04X4EJP7
30,000 9 4 0.7 1Am 4 CXT60610300P84GE NE06X4EGP8
30,000 12 4 0.7 1Am 4 CXT60610300P84GF NE06X4FGP8
30,000 20 4 0.7 1Am 4 CXT60610300P84GH NE06X4HGP8
32,000 10 4 0.7 2m 5 CXT70420320P65EG NF24X5GEP6
32,000 10 5 0.8 2m 5 CXT70420320P65FG NF24X5GFP6
32,000 13.5 4 0.7 2m 5 CXT70420320P65EH NF24X5HEP6
32,000 13.5 5 0.8 2m 5 CXT70420320P65FH NF24X5HFP6
32,000 18.5 4 0.7 2m 5 CXT70420320P65EJ NF24X5JEP6
32,000 18.5 5 0.8 2m 5 CXT70420320P65FJ NF24X5JFP6

葫芦总体  Hoist general

起重量0.5t - 80t

Safe working load  0.5t - 80t

欧式优化设计,自重轻

DIN/FEM/ISO standard, lightweight construction

静音设计

Silent operation

葫芦高度矮,减低厂房高度,节省建筑成本

Lower hoist frame, building cost saving

电机、风扇、减速机、制动器、卷筒一体化设计,结构紧凑

Modern design of motor, fan, gear, drum, brake combined  with construction of the hoist

优化风冷,散热性能好,冷却提高30%,耐170°C温升

Optimum cooling, cooling improved up 30%, cut off  170°C  as standard

环境温度 -10 – +40

Ambient temperature  -10 – +40

环氧富锌漆,两底两面,140μ厚,寿命长,外表美观,光泽好

Painted with 140μm epoxy paint for maximum resistance against climatic conditions, extending the hoist’s working life








起升电机 Lifting motor

鼠笼式异步电机(同步转速达到3000转)

Asynchronous squirrel cage motor (Synchronous speed 3000rpm)

双速或变频无级调速

2-speed pole changing or frequency invertor for stepless control

重级制,负载持续率 60%ED

Heavy duty, 60% ED rating

F级绝缘,防护等级IP55

F class insulation, IP55 pretection


起升减速机 Lifting gear box

全铝壳体,自重轻,密封良好

Sealed gearbox housings are made of aluminum

半油脂润滑,全寿命设计,免维护

Totally enclosed semi-fluid, lifetime designing

斜齿轮,硬齿面

Helical type, hardened and ground gears.









起升制动器 Lifting brake

电磁盘式制动器

DC Electromagnetic disc brake

自调节刹车片,磨损自动补偿,当刹车片厚度不够时报警

No adjusting requirement for brake lining, maintenance free

常闭式制动器与电机一体化设计,同步性好,以及至少为1.8倍的安全制动力矩有效防止溜钩

Motor and brake working together, brake torque is at least 1.8 times higher than the nominal torque of the motor, not slip at any point of starting or stopping of the hoist or lower motions

密封良好,防尘

Fully covered, dust proof

重级制

Heavy duty brake

摩擦接触面积大,制动力矩可调

Adjustable brake toque

无石棉摩擦片,环保

Brake linings are asbestos-free

刹车片寿命:正常使用不低于100万次,紧急制动不低于500

Super life time, 1 million normal brakings, 500 emergency brakings







卷筒 Rope Drum

大直径卷筒,卷筒与钢丝绳直径比达到46,有效延长钢丝绳寿命

Large diameter rope drum Dd/dr=46, and rope pulleys extend the rope’s lifetime

钩漂移仅+/-4mm/m,落位准确

Ensures accurate load positioning, hook drift +/-4mmper1m

吊钩低点时,至少还有两圈钢丝绳在卷筒上

Min. two dead rope turns while the hook is in the lowest position

球墨铸铁导绳器,重级制,耐磨性好

Rope guide is wear resistant, heavy-duty, made of spheroidal graphite cast iron

弹簧压轮组成的防松绳装置,有效防止钢丝绳出槽

A spring operated guide roll in the rope guide prevents slack rope


钢丝绳 Steel Wire Rope

高强钢丝绳,破断力达到2160 N/mm

High tensile steel wire rope, wire strength 2160N/mm2

镀锌,免维护

All galvanized as standard


吊钩 Hook

吊钩锻件为调质钢34CrMoV,依据标准DIN17200

DIN 17200 standard Hook, quenched and tempered 34CrMoV steel

全寿命润滑的抗磨轴承,360度旋转

anti-friction lifetime lubricated bearings and rotate freely 360 degrees

安全扣防止脱钩

Spring-loaded sturdy safety catch, ensuring slings not release








过载保护装置:当过载发生时,运行下降,不允许上升,便于重物安全落地

Overload protection: equipped self re-setting overload protector, the hoist motion is stopped if overloading occurs, but lowering is permitted, making the crane safe

起升限位:凸轮旋转式,4级可调,自动复位,先减速后停止,精确相序控制

Lifting limit switch: adjustable, geared 4-step rotating limit switches, self re-setting, slow down and stop

机械防撞装置:橡胶缓冲块,高效吸能

End stop: energy-absorbing rubber buffers

无线防撞限位:红外感应限位,灵敏、可靠

Wireless anti-collusion limit switch:  infra-red type

过热保护:起升电机配置热敏电阻,具有良好的过热保护功能

Overheating protection: equipped with imbedded bi-metallic thermal switch (or thermistors) in the windings to protect against overheating

制动安全保护:电制动+机械制动

Electrical braking is provided in all circumstances and the mechanical brake is used only as a holding and emergency brake
